ARTICULATED JIB CRANE Arm System

Folding Jib Crane

Articulated Jib Crane is kind of cantilever crane, refers to the pick-up device hanging at the end of the arm system. The Rotary arm can be turned around and cannot pitch. It consists of Columns, Swing Arms, Rotary arm and Lifting Device. It solves the weakness of site limitations of fixed crane and is ideal and popular equipment.
Folding Jib Crane or Articulated Jib Crane is kind of cantilever crane, refers to the pick-up device hanging at the end of the arm or hanging on the trolley that can be run along the rotary arm, the rotary arm can be turned around, and can not pitch. It consists of columns, swing arms, rotary arm drive devices and electric hoists. It solves the weakness of site limitations of fixed crane, and is ideal and popular equipment for repair and installation.



Features

  • Light weight and structure
  • Manual/ electric slewing rotation as optional
  • Match with install base, no need foundation
  • Flexible operation and popular for cramped space

Available Options

  • Pneumatic Break at all Rotational Joints
  • Mounting options: overhead, trolley, pedestal, wall mount, or mobile/portable base
  • 360° continuous rotation (electric or pneumatic) at rotating joints
  • Primary and secondary axes caliper disc brakes
  • Customer specified air or electric hoist can be supplied, consult factory for availability and pricing.

Advantage

  • Reasonable design and light weight
  • High efficiency, save energy, small space
  • Match with intelligent hoist to operate
  • Hoist frequent short travel and dense hoist operation, easy maintenance.
  • High strength, speed and precision
  • Standard models available to accommodate light to heavy lifting applications
  • High precision bearings create smooth levels of operation
  • Leveling bolts to minimize second arm drift
  • Air hoist supplied with articulated jib
  • Air filter regulator and primary & secondary axes rotation stops to keep arms in specific zones

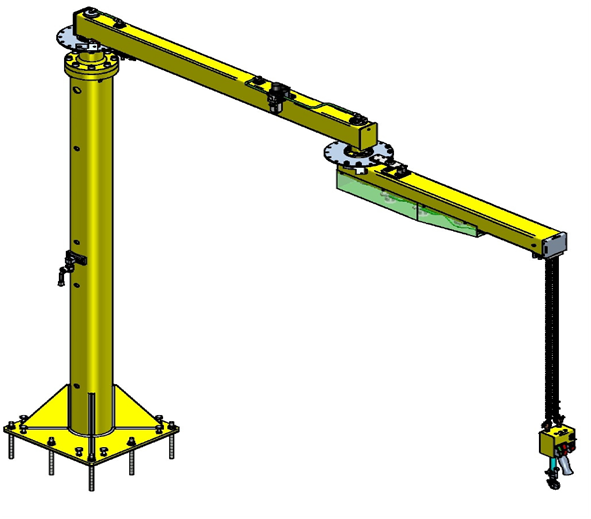

FAC SERIES JIB CRANE

Model No. Arm/ Boom Length (L) Capacity (Kg) Under Clearance (H2) Lifting Unit
FAC060-30-H 3000 mm 60 Kg 3000 mm Hoist
FAC060-30-B 3000 mm 60 Kg 3000 mm Air Balancer
FAC100-30-H 3000 mm 100 Kg 3000 mm Hoist
FAC100-30-B 3000 mm 100 Kg 3000 mm Air Balancer
FAC160-30-H 3000 mm 160 Kg 3000 mm Hoist
FAC160-30-B 3000 mm 160 Kg 3000 mm Air Balancer
FAC250-25-H 2500 mm 250 Kg 3000 mm Hoist
FAC500-25-H 2500 mm 2500 Kg 3000 mm Hoist
yoshida
yoshida
Page top
Product-3

OAC SERIES JIB CRANE

Model No. Arm/ Boom Length (L) Capacity (Kg) Under Clearance (H2) Lifting Unit
FAC060-30-H 3000 mm 60 Kg 3000 mm Hoist
FAC060-30-B 3000 mm 60 Kg 3000 mm Air Balancer
FAC100-30-H 3000 mm 100 Kg 3000 mm Hoist
FAC100-30-B 3000 mm 100 Kg 3000 mm Air Balancer
FAC160-30-H 3000 mm 160 Kg 3000 mm Hoist
FAC160-30-B 3000 mm 160 Kg 3000 mm Air Balancer
FAC250-25-H 2500 mm 250 Kg 3000 mm Hoist
FAC500-25-H 2500 mm 2500 Kg 3000 mm Hoist
