JIB CRANE

JIB CRANE

Arhan Jib cranes are indispensable to a variety of industries as they are used for transporting for both light and heavy objects. They are frequently used for lifting operations by multitudinous industries. ATPL Jib cranes prove to be unparalleled when it comes to increasing production, worker productivity whilst reducing workplace ergonomic and safety.
Even for easy design ATPL Jib Crane are used for unique, tough and continuous lifting operations. Using ATPL jib crane can really help you streamline customer production process. They are pretty versatile and can be used in multiple areas Automobile, Chemical, Foundry, Casting, Paint and General Industries.



yoshida
  • Level adjustment bolt
  • Low friction profiled rail which allow smooth Movement of Hoist
  • Specialized bearing which allow system to move extremely low Push Pull force
  • Universal Joint which allow 360 deg rotation 100%
  • Seamless Tube All welded Joints with MTD Test and stress Released
yoshida
Page top

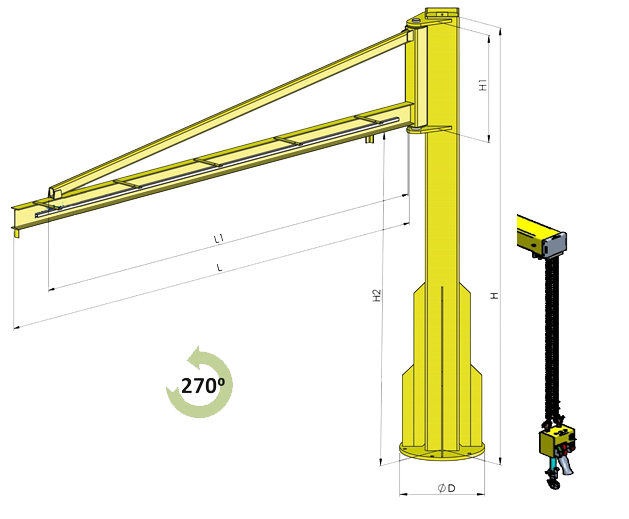

FX SERIES JIB CRANE

Product-3
Model No. Arm/ Boom Length (L) Capacity (Kg) Under Clearance (H2) Total Height
FX010-06-3 6000 mm 100 Kg 3000 mm 4100 mm
FX025-06-3 6000 mm 250 Kg 3000 mm 4100 mm
FX050-06-3 6000 mm 500 Kg 3000 mm 4100 mm
FX100-06-3 6000 mm 1000 Kg 3000 mm 4100 mm
FX200-06-3 6000 mm 2000 Kg 3000 mm 4100 mm
FX300-04-3 4000 mm 3000 Kg 3000 mm 4100 mm
FX400-04-3 4000 mm 4000 Kg 3000 mm 4100 mm
yoshida
Page top

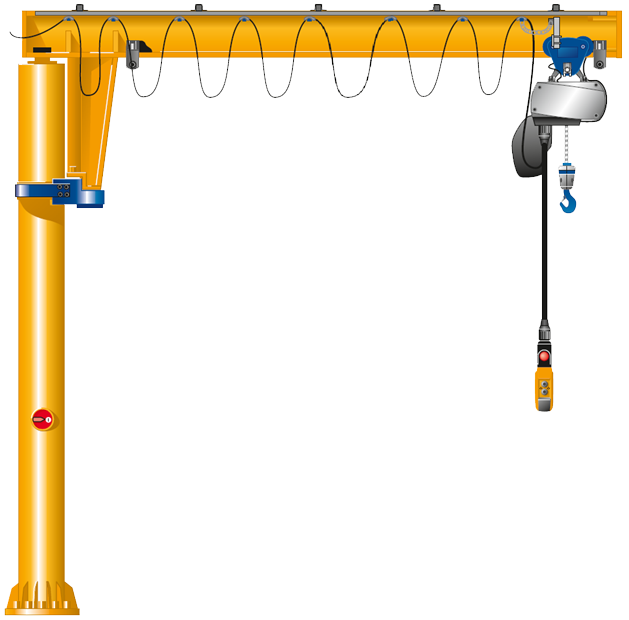

FY SERIES JIB CRANE

Product-3
Model No. Arm/ Boom Length (L) Capacity (Kg) Under Clearance (H2) Total Height
FY010-06-3 6000 mm 100 Kg 3000 mm 3500 mm
FY025-06-3 6000 mm 250 Kg 3000 mm 3500 mm
FY050-06-3 500 mm 500 Kg 3000 mm 3500 mm
FY100-04-3 4000 mm 1000 Kg 3000 mm 3500 mm
FY200-04-3 5000 mm 2000 Kg 3000 mm 3500 mm
yoshida
Page top

FZ SERIES JIB CRANE

Product-3
Model No. Arm/ Boom Length (L) Capacity (Kg) Under Clearance (H2) Total Height
FZ200-06-3 6000 mm 2000 Kg 3000 mm 3500 mm
FZ300-06-3 6000 mm 2000 Kg 3000 mm 3500 mm
FZ400-06-3 6000 mm 4000 Kg 3000 mm 3700 mm
FZ500-04-3 4000 mm 5000 Kg 3000 mm 3700 mm
FZ600-04-3 4000 mm 6000 Kg 3000 mm 3700 mm
yoshida
Page top

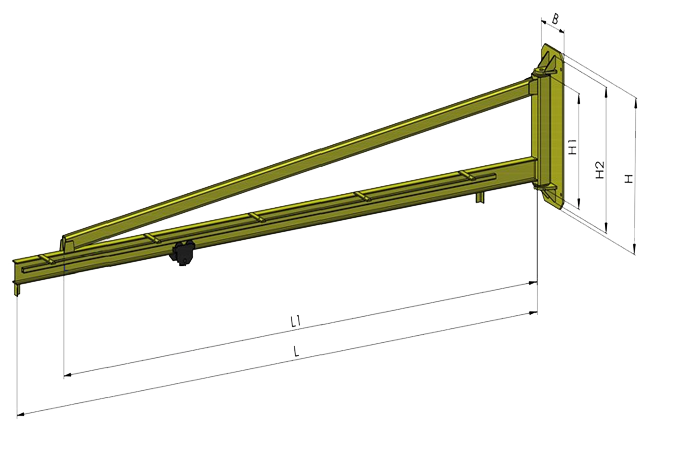

FZ SERIES JIB CRANE

Product-3
Model No. Arm/ Boom Length (L) Capacity (Kg) Total Height
WX010-06 6000 mm 100 Kg 1100 mm
WX025-06 6000 mm 250 Kg 1100 mm
WX050-06 6000 mm 500 Kg 1100 mm
WX100-04 4000 mm 1000 Kg 1500 mm
yoshida
Page top
yoshida

yoshida

    Jib cranes are known for their immense capabilities provided you know how to operate it safely. Here’re few tips to help you operate-

  • Never overload the jib crane. You should also be aware of the maximum load capacity for a safe operation.
  • The travel path must be clear before you move the load or jib arm.
  • Never pull loads. You must push loads instead.
  • Stay away from dragging the load using the jib arm.
  • If you need to lower the load, do it gradually with utmost care. Always avoid whipping of the jib arm.
  • Always analyze the lift stability by conducting a trial lift.
  • Always be aware of any equipment or worker moving into the path of the jib crane.
yoshida
